ESMC5系列仪表

ESMC5系列仪表

概述:ESMC5系列仪表是一款性能优越的智能电力仪表,可帮助用户实现监控电力系统运行状态,了解系统能耗及费用,获取系统电能质量,记录系统事件的需求。

功能描述

可获取全面的电参量数据,包括系统电压、电流、功率(P、Q、S、PF等)、频率等参数,掌握电力系

统的运行情况。

All-parameter measurement data can be obtained, including system voltage, current, power (P, Q,S, PF,

etc.), frequency and others, to master the operation of the power system

四象限电能计量,方便了解电能消耗情况。

Four-quadrant power measurement facilitates the understanding of power consumption situation

可以获取测量点的31次以内的谐波和不平衡情况,可快速了解测量点的电能质量。

lt can obtain less than 31th harmonics and unbalance of the measurement point, and can quickly under-
stand the power quality of the point

可扩展需量统计,为分析系统需求提供数据支撑。

Extensible demand statistics provide data support for system demand analysis

可扩展事件记录,包括SOE事件、告警事件,方便了解系统运行情况。

Extensible event logging including SOE events, alarm events understand the system operation easily

可配置有效的输入输出,可扩充至10路的数字信号通道,可以大大扩充仪表的信息收集和交互的范围。

It can be confifigured with effffective input and output, and expanded to 10 channels of digital signal
channels, which greatly expand the scope of information collection and interaction of the instrument

可提供通讯端口,方便仪表的信息传递。

Communication port can be provided to facilitate the information transmission of the instrument

提供液晶屏显示,可实时了解仪表的信息。

LCD is provided for real-time understanding of instrument information

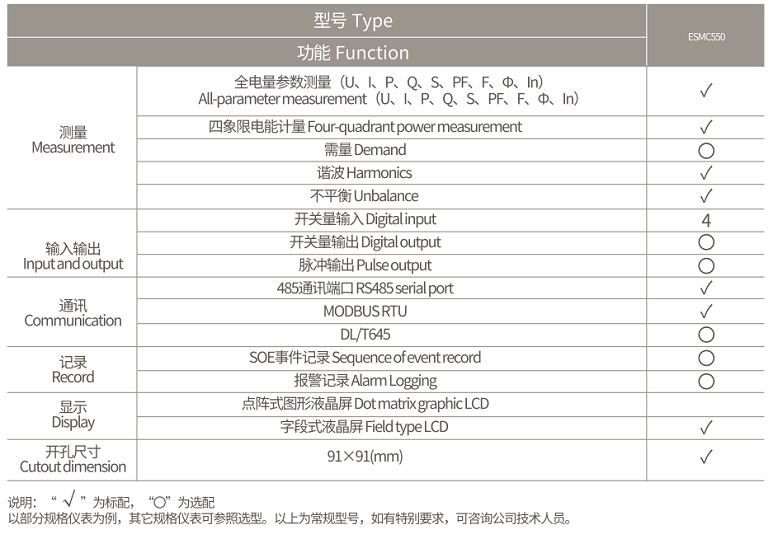

规格型号

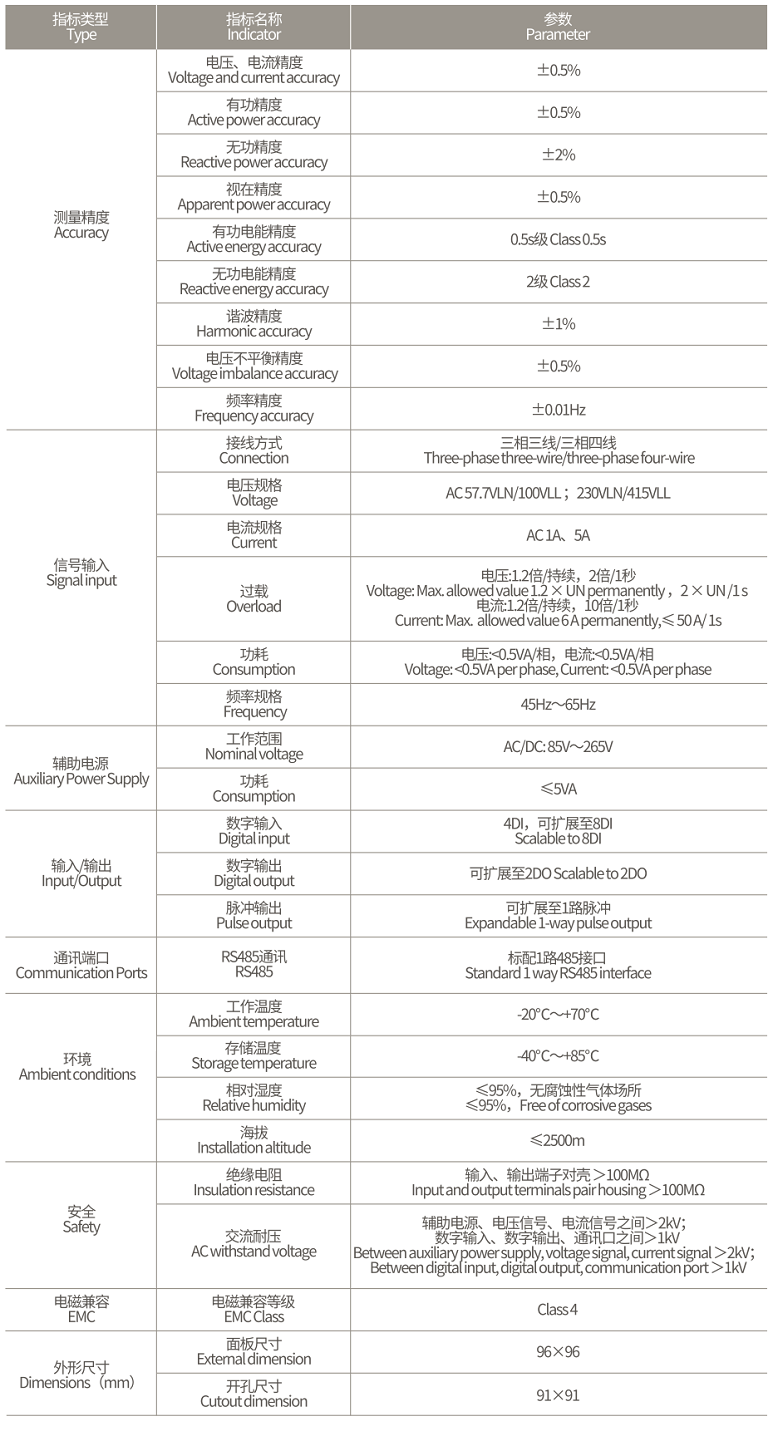

技术参数
